NodeRed解决跨生态的开关/灯具联动

在我们做全屋智能调试的时候，经常会遇到智能开关控制智能灯的情况。

大家都知道,智能开关控制智能灯,往往需要把智能开关转换为无线开关模式。

同时还需要在对应的生态中设置自动化,这样才能够让智能开关和智能灯同时在线,否则当智能开关处于关闭的状态,智能灯就离线了。

但在这里必须要有一个前提, 智能开关和智能灯都必须要接入同一个生态,

比如米家的开关,自动化就必须要在米家里面写, aqara的开关也需要在aqara home里面配置.

今天我这里有一个典型的例子,开关是aqara的,但灯具的调光调色,只能在homekit里面控制.一旦aqara开关关闭了,智能灯具就离线了.

在我的调试方案中, 需要把他们同时都接入到Home Assistant里面统一管理.

那么怎样做到既可以单独控制灯具,又不能丢掉开关的功能呢?

我的方法是用NodeRed来写一个简单的自动化,即可完美解决.

效果是这样的,当我点击开关,不管是在APP上切换开关,还是直接去点按物理按钮,效果都是一样的.

都可以让智能灯具切换开关状态.

基本的思路是这样的:
1. 必须要保持开关的常通电状态

2. 监控开关的状态,断电后切换灯具的状态.

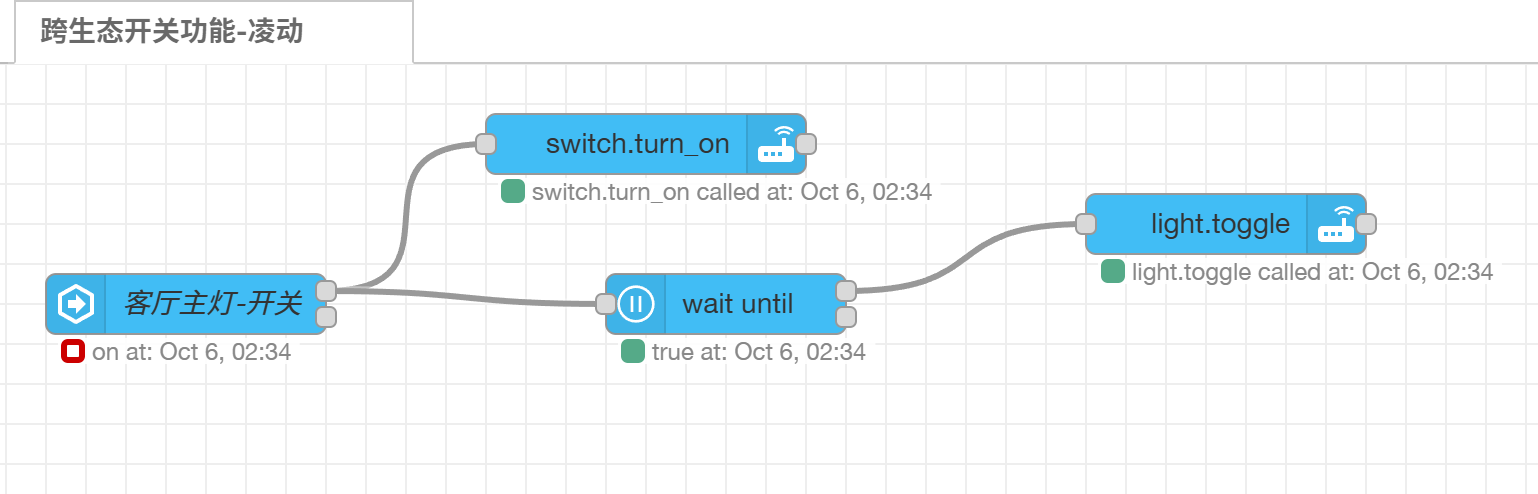

所以在NodeRed中,增加一个状态监控. 当开关被关闭,触发开关再次打开.开关再次打开的时候,去切换灯具的状态即可.

[
    {
        "id": "85211e94963c7b21",
        "type": "server-state-changed",
        "z": "ae76f6bbf821abec",
        "name": "客厅主灯-开关",
        "server": "219af92c.afc8e6",
        "version": 6,
        "outputs": 2,
        "exposeAsEntityConfig": "",
        "entities": {
            "entity": [
                "switch.wall_switch_switch2_6"
            ],
            "substring": [],
            "regex": []
        },
        "outputInitially": true,
        "stateType": "str",
        "ifState": "off",
        "ifStateType": "str",
        "ifStateOperator": "is",
        "outputOnlyOnStateChange": true,
        "for": "0.5",
        "forType": "num",
        "forUnits": "seconds",
        "ignorePrevStateNull": false,
        "ignorePrevStateUnknown": false,
        "ignorePrevStateUnavailable": false,
        "ignoreCurrentStateUnknown": false,
        "ignoreCurrentStateUnavailable": false,
        "outputProperties": [
            {
                "property": "payload",
                "propertyType": "msg",
                "value": "",
                "valueType": "entityState"
            },
            {
                "property": "data",
                "propertyType": "msg",
                "value": "",
                "valueType": "eventData"
            },
            {
                "property": "topic",
                "propertyType": "msg",
                "value": "",
                "valueType": "triggerId"
            }
        ],
        "x": 110,
        "y": 120,
        "wires": [
            [
                "6cd00db484afd3f1",
                "91626f3b1389ba64"
            ],
            []
        ]
    },
    {
        "id": "6cd00db484afd3f1",
        "type": "api-call-service",
        "z": "ae76f6bbf821abec",
        "name": "",
        "server": "219af92c.afc8e6",
        "version": 7,
        "debugenabled": false,
        "action": "switch.turn_on",
        "floorId": [],
        "areaId": [],
        "deviceId": [],
        "entityId": [
            "switch.wall_switch_switch2_6"
        ],
        "labelId": [],
        "data": "",
        "dataType": "jsonata",
        "mergeContext": "",
        "mustacheAltTags": false,
        "outputProperties": [],
        "queue": "none",
        "blockInputOverrides": true,
        "domain": "switch",
        "service": "turn_on",
        "x": 340,
        "y": 40,
        "wires": [
            []
        ]
    },
    {
        "id": "91626f3b1389ba64",
        "type": "ha-wait-until",
        "z": "ae76f6bbf821abec",
        "name": "",
        "server": "219af92c.afc8e6",
        "version": 3,
        "outputs": 2,
        "entities": {
            "entity": [
                "switch.wall_switch_switch2_6"
            ],
            "substring": [],
            "regex": []
        },
        "property": "state",
        "comparator": "is",
        "value": "on",
        "valueType": "str",
        "timeout": "1",
        "timeoutType": "num",
        "timeoutUnits": "seconds",
        "checkCurrentState": true,
        "blockInputOverrides": true,
        "outputProperties": [],
        "x": 380,
        "y": 120,
        "wires": [
            [
                "343ff0e8470ed931"
            ],
            []
        ]
    },
    {
        "id": "343ff0e8470ed931",
        "type": "api-call-service",
        "z": "ae76f6bbf821abec",
        "name": "",
        "server": "219af92c.afc8e6",
        "version": 7,
        "debugenabled": false,
        "action": "light.toggle",
        "floorId": [],
        "areaId": [],
        "deviceId": [],
        "entityId": [
            "light.pc000apcct_light_bulb_6"
        ],
        "labelId": [],
        "data": "",
        "dataType": "jsonata",
        "mergeContext": "",
        "mustacheAltTags": false,
        "outputProperties": [],
        "queue": "none",
        "blockInputOverrides": true,
        "domain": "light",
        "service": "toggle",
        "x": 630,
        "y": 80,
        "wires": [
            []
        ]
    },
    {
        "id": "219af92c.afc8e6",
        "type": "server",
        "name": "Home Assistant",
        "addon": true
    }
]
